BELL SHAPE
High Productivity System for External Thread Milling Applications
See it in Action
Features and Benefits:
• Short toolholder movements – for shorter cycle time and higher productivity
• Multi-flute toolholder – for fast feed

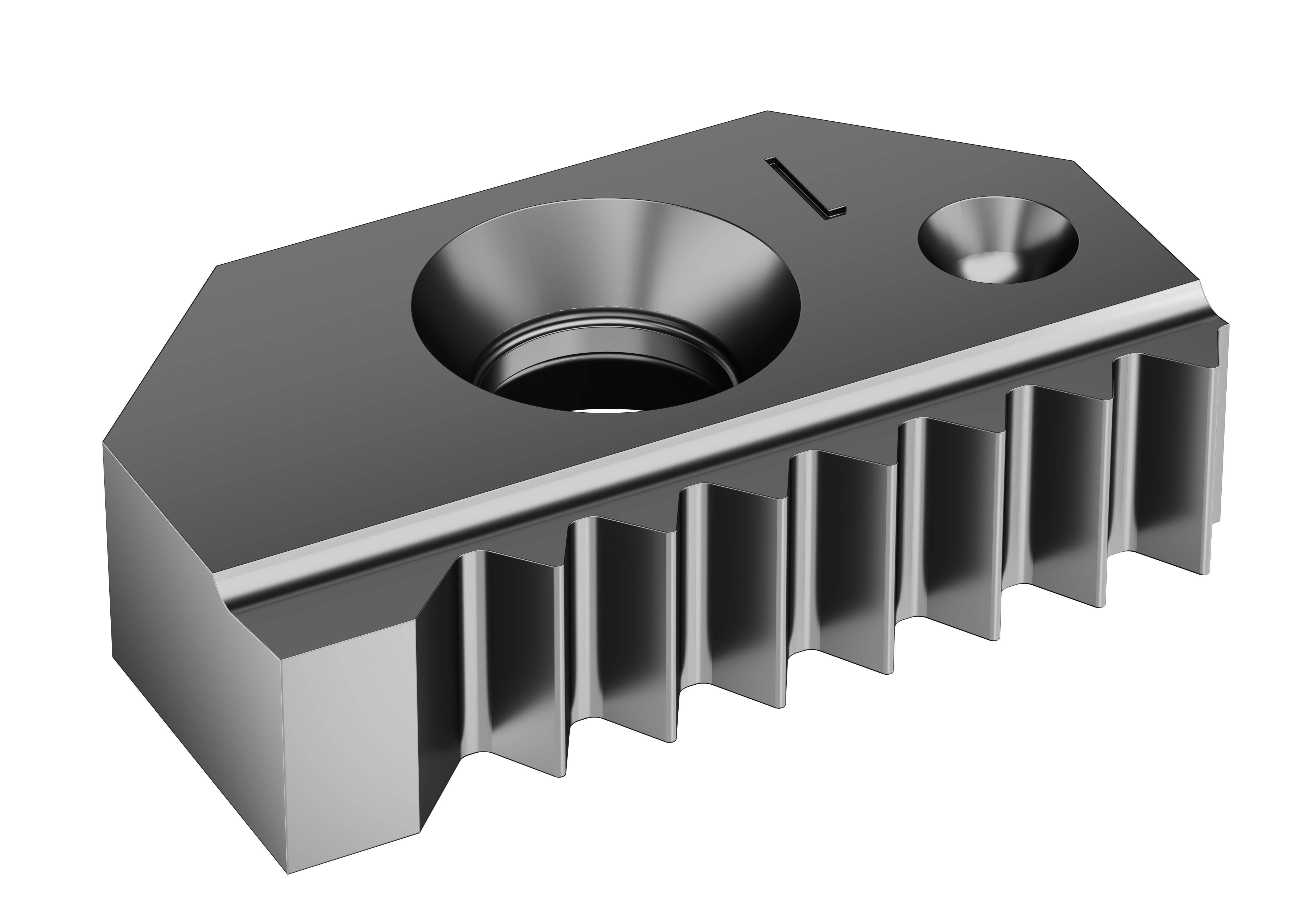

• New innovative inserts – specially designed for external applications
• Easy clamping – convenient insert assembly from the bottom of the toolholder, easily accessible to the screwdriver
• Dovetail clamping system – for better rigidity
• Enclosed holder structure – for high threading accuracy

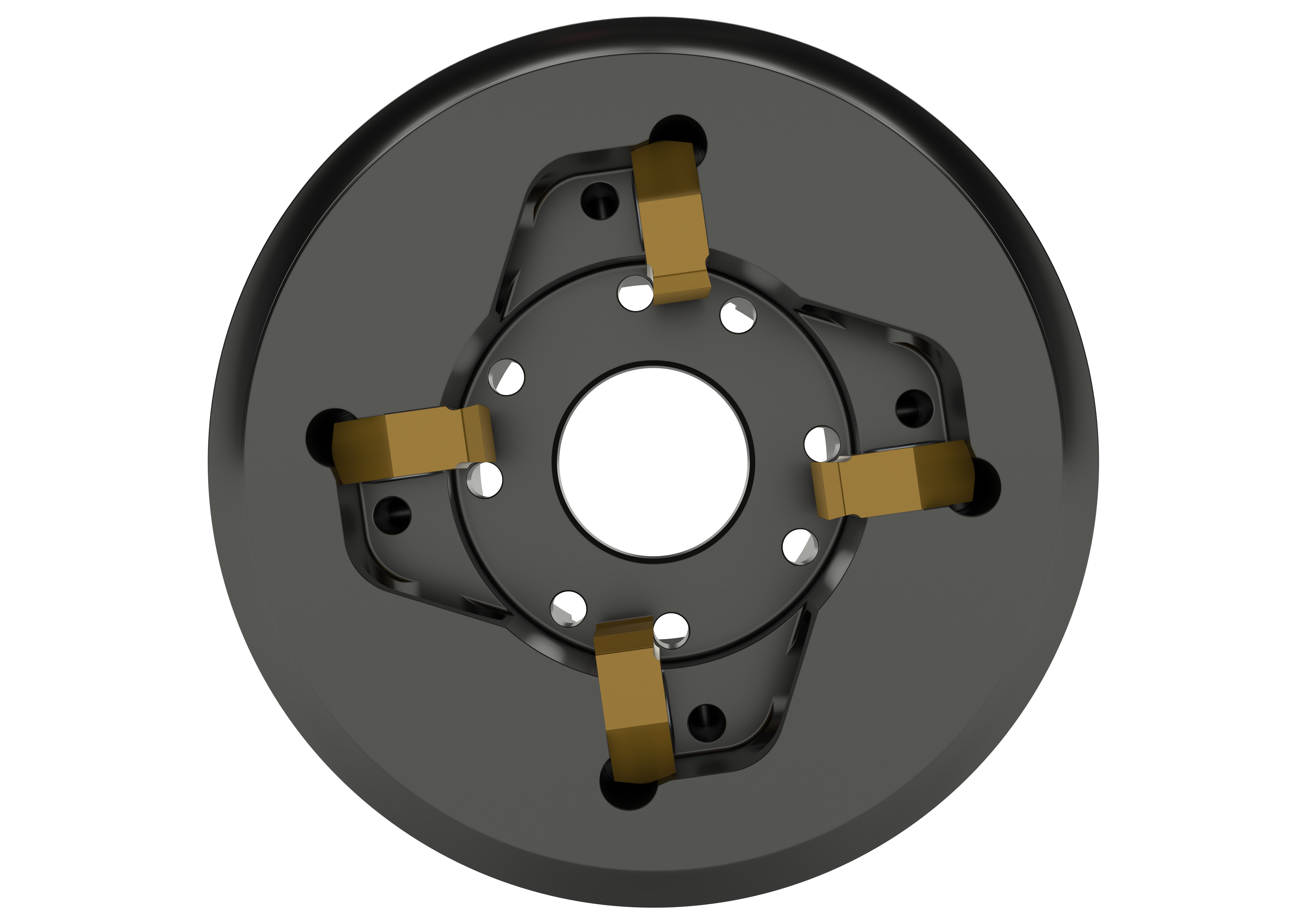

• Includes 4 inserts – 3 standard inserts for threading +1 insert for threading and deburring
• Massive coolant thru with 12 outlets – 3 coolant outlets for each insert for effective chip evacuation and increased tool life
• Inserts with 2 cutting edges (not including the insert with deburring option)
• Excellent quality surface finish
Applications:
• Toolholder and inserts are designed for Common Rail applications M14x1.5x11.5 and M16x1.5x11.5
• Additional applications (toolholder and inserts) can be offered by request
